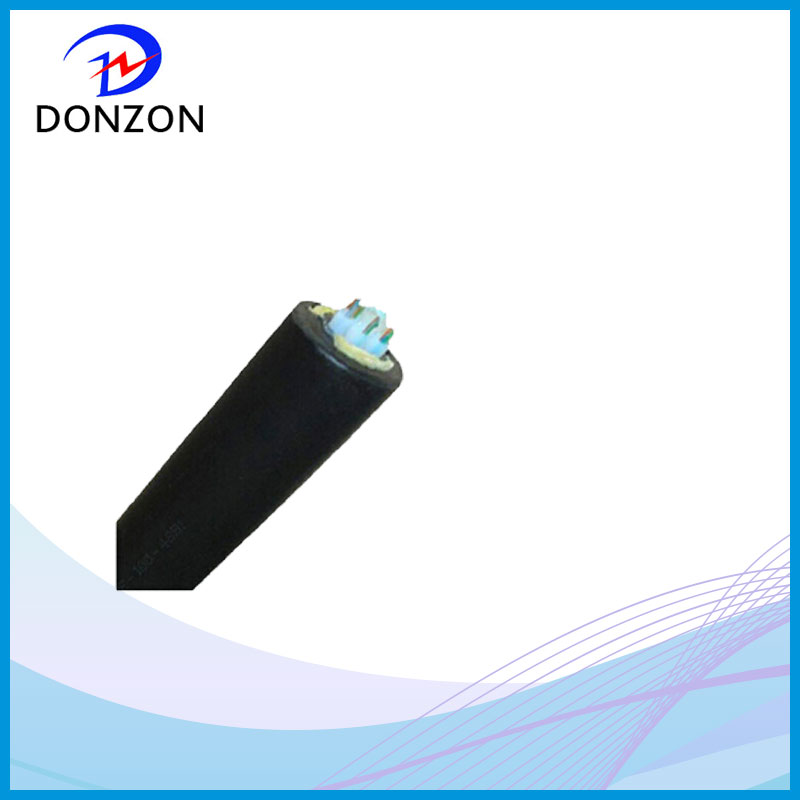

ADSS fiber optic Cable (All Dielectric Self supporting Aerial Cable) is loose tube stranded. Fibres are positioned into loose tube made of high modulus plastics. The tubes are filled with a water-resistant around FRP(Fibre Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the ADSS fiber optic cable core is filled with filling compound, it is covered witha thin polyethylene (PE) inner sheath. After two layers of Aramid yarns are applied in two directions over the inner sheath as strength member, the ADSS fiber optic cable is completed with PE/AT outer sheath,our factory can produce all Self Supporting Aerial 8 core12 core 24 core 48core 64 core 96 cores 122core ADSS fiber optic cable /ADSS cable and our testing standard is according IEC standard .
2.Structure and Technical Specifications
|Fiber Count||Nominal Diameter |
|Nominal Weight (kg/km)||Max Fibers per Tube||No. of (Tubes+fillers)||Allowable Tensile Load (N)||Allowable Crush Resistance (N/100mm)|
|Short Term||Long Term||Short Term||Long Term|
|144-216||18.3||250||12||18 (2 layers)||3000||1000||3000||1000|
3.The choice of raw material and packing
Raw material fiber core adopts domestic well-known fiber core product, to ensure that the service life of the adss fiber optic cable for 30 years Sophisticated production technology, import of aramid yarn force uniform, has the excellent performance of stress and strain.
The Nordic chemical covering materials for 6081 electric mark, smooth appearance is complete, Can effectively reduce the corrosion damage, improve the service life of the ADSS fiber optic cable.
Fully enclosed packaging to ensure that the product in the process of transportation safety With the disc attached certificate, loading and unloading and construction points for attention, transport considerations
4 IEC testing srandard
|Max Tension Performance||IEC 60794–1-2-E|
|Max. Operation Tension||IEC 60794–1-2-E1|
|Crush Test||IEC 6079 –1-2-E3|
|Impact Test||IEC 60794–1-2-E4|
|Repeated Bending||IEC 60794–1-2-E6|
|Torsion Test||IEC 60794–1-2-E7|
|Cable bend||IEC 60794–1-2-E11A|
|Attenuation Coefficient||ITU-T G.652|
|Temperature Cycling||IEC 60794–1-2-F1|
|Water Penetration||IEC 60794–1–2-F5B|
|Filing Compound Flow||IEC 60794-1-E14|
