Overhead aluminum conductor steel reinforced ACSR conductor

Description

1.APPLICATIONS

Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.


2.SPECIFICATIONS

ROLLAS 's ACSR bare conductor meets or exceeds the following ASTM specifications:

B230 Aluminum 1350-H19 Wire for Electrical Purposes.

B232 Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR).

B498 Zinc-Coated (Galvanized) Steel Core Wire for Use in Overhead Electrical Conductors.

B500 Metallic Coated Stranded Steel Core for Use in Overhead Electrical Conductors


3.CONSTRUCTION

Aluminum 1350-H19 wires, concentrically stranded about a steel core. Standard core wire for ACSR is class A galvanized.

Class A core stranding is also available in zinc-5% aluminum-mischmetal alloy coating.

For aluminum-clad (AW) ACSR, please refer to the ACSR/AW catalog sheet

Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

ACSR conductor is also available in non-specular.


Code WordSize (AWG or kcmil)Strand- ing (Al/Stl)Diameter (ins.)Weight Per 1000 ft. (lbs.)Content (%)Rated Strength (lbs.)Resistance OHMS/1000 ft.Allowable Ampacity+ (Amps)
Individual WiresSteel CoreComplete CableAlStlTotalAlStlDC @ 20°CAC @ 75째C
AlStl


Swift636.036/1.1329.1329.1329.935964764392.727.2813690.0271.0334769
Rail95445/7.1456.0971.29121.165899175107483.6716.3325900.0180.0225993
Cardinal95454/7.1329.1329.39871.196899329122773.2126.7933800.0179.0228996
Ortolan1033.545/7.1515.101.30311.212973190116383.6716.3327700.0167.02091043
Curlew1033.554/7.1383.1383.4151.245973356133073.2126.7936600.0165.02111047
Bluejay111345/7.1573.1048.31451.2581048205125383.6716.3329800.0155.01941092
Finch111354/19.1436.0861.43071.2921053375142973.7226.2839100.0154.01971093
Bunting1192.545/7.1628.1085.32561.3021123219134383.6716.3332000.0144.01821139
Grackle1192.554/19.1486.0892.44581.3371129402153173.7226.2841900.0144.01841140
Bittern127245/7.1681.1121.33621.3451198234143283.6716.3334100.0135.01711184
Pheasant127254/19.1535.0921.46051.3811204429163373.7126.2943600.0135.01731187
Dipper1351.545/7.1733.1155.34661.3861273248152183.6716.3336200.0127.01621229
Martin1351.554/19.1582.0949.47461.4241279456173573.7226.2846300.0127.01631232
Bobolink143145/7.1783.1189.35661.4271348263161183.6716.3338300.0120.01531272
Lapwing159045/7.188.1253.37591.5041498292179083.6716.3342200.0108.01391354
Falcon159054/19.1716.103.51481.5441505536204173.7226.2854500.0108.01401359
Chukar178084/19.1456.0874.43681.6021685386207281.3518.65

51000

.0097.01251453



Code WordSize (AWG or kcmil)Strand- ing (Al/Stl)Diameter (ins.)Weight Per 1000 ft. (lbs.)Content (%)Rated Strength (lbs.)Resistance OHMS/1000 ft.Allowable Ampacity+ (Amps)
Individual WiresSteel CoreComplete CableAlStlTotalAlStlDC @ 20°CAC @ 75°C
AlStl
HIGH MECHANICAL STRENGTH
Grouse808/1.1.1667.1667.367757414950.4849.525200.207.294204
Petrel101.812/7.0921.0921.2763.4619615825437.7962.2110400.158.250237
Minorca110.812/7.0961.0962.2885.48110417227637.7562.2511300.145.235248
Leghorn134.612/7.1059.1059.3177.5312720933537.7962.2113600.120.204273
Guinea159.012/7.1151.1151.3453.57615024739637.7962.2116000.101.181297
Dotterel176.912/7.1214.1214.3642.60716727444137.7962.2117300.0911.169312
Dorking190.812/7.1261.1261.3783.6318029647637.7962.2118700.0845.160324
Cochin211.312/7.1327.1327.398.66319932852737.862.228400.0763.150340

+ Conductor temperature of 75°C, ambient temperature 25°C, emissivity 0.5, wind 2 ft./sec., in sun.



4.Packing and Shipping

ACSR conductor/ACSR/Bare Conductor/Overhead Conductor cable,

Within 2 weeks after confirming the order BV Cable

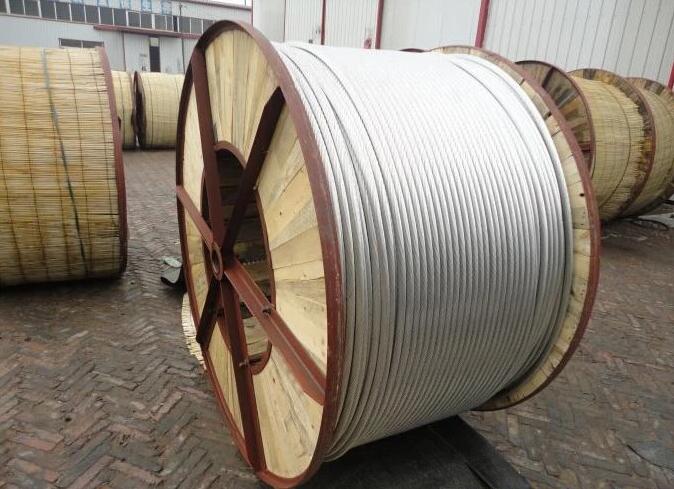

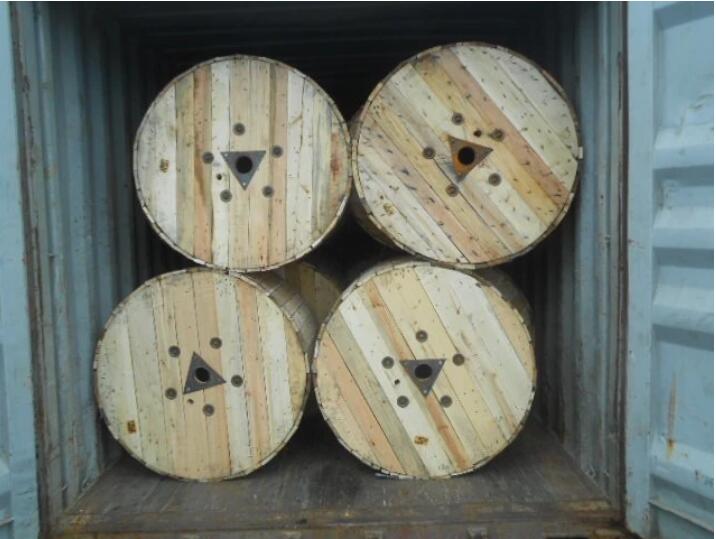

1) Packing length: 100 to 1,000m reeled in carton drum or according to customers' requirement

2) Outer packing: wooden case, carton box

3) Other packing requirement according to client's requestACSR1.jpg ACSR2.jpg
