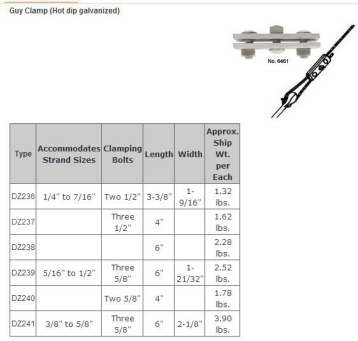

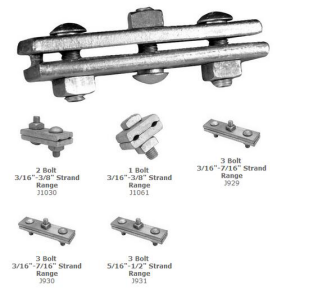

Clevis Plate with U bolt/Guy clamp

Description

1.2 Bimetallic Parallel Groove Clamps With Two Bolts

DIN 48201, DIN 48204

For connection of Al conductors according to DIN 48201 & ACSR conductors according to DIN 48204 with copper tap-off conductors according to DIN 48201.

Material

Body:High strength, corrosion-resistant, aluminium alloy (AlMgSi1/Al6082).

Bolts:Steel 8.8, DIN 933, hot-dip galvanised.

Nuts:Steel 8, DIN 934 hot-dip galvanised.

Conical Washers:According to DIN 6796 corrosion-protected.

Pressure Pad:Aluminium alloy, with spring washers DIN 127 hot-dip galvanised.

Stainless steel A2 bolts and nuts available according to order

conical washers or pressure pad according to order.

*Aluminium side for sector shape cable.

Minimum Torque Moments:

M8 : 23Nm

M10 : 46Nm
