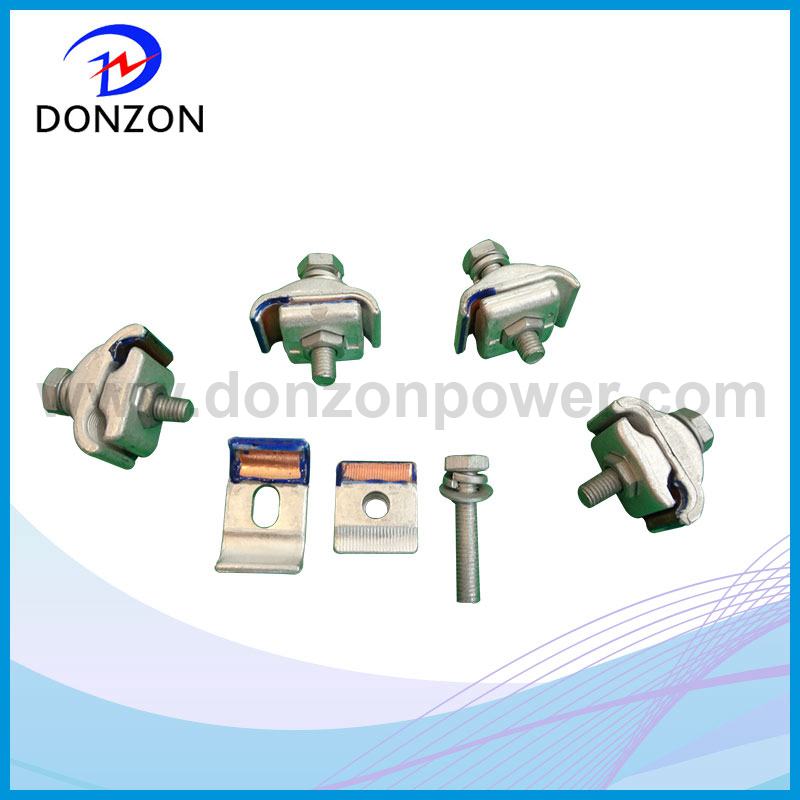

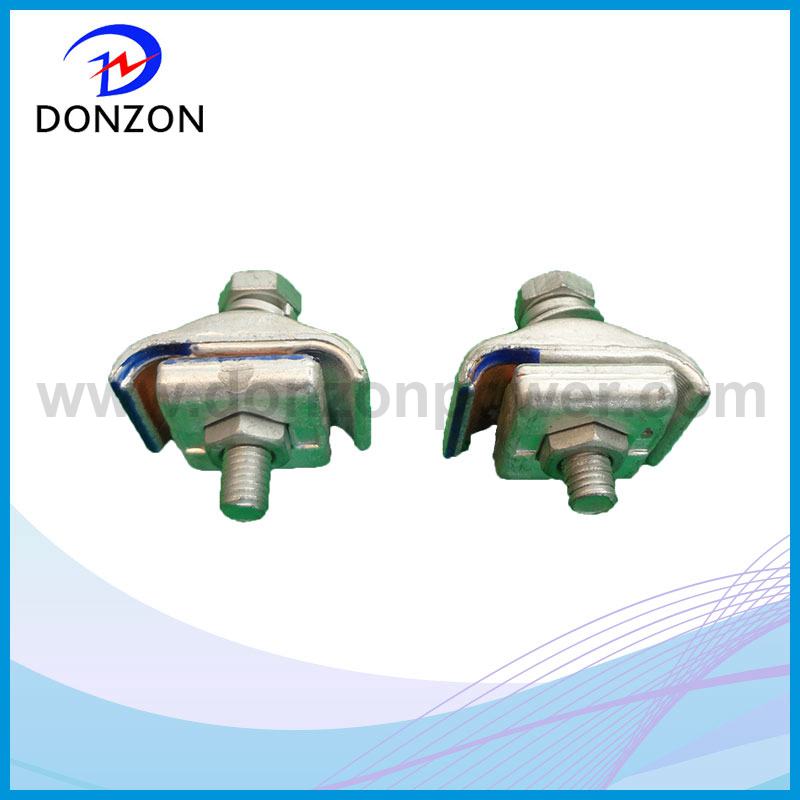

Specific Form Parallel Groove Clamp

Description

1,Product Description

*Parallel Groove connector is used for connecting or branching AAC, AAAC or ACSR overhead conductors

*High strength and adjustment for varying conductors on each side.

*Weather proof performance: having good performance after 1008 hours artificial climate aging test

*Righed grooves without any loose part

*Circular arc embracing most of the area to provide the conductor uneasy creep and great grip strength.


2,Product Description

NameTypeConductor(mm)
Specific form copper parallel groove clampJBT-16-12016~120
JBT-50-24050~240
Specific form copper-aluminium parallel groove clampJB-TL-6-706~70
JB-TL-16-12016~120
JB-TL-50-24050~240


NameTypeConductor(mm)
Specific form aluminium parallel groove clampJBL-6-356-35
JBL-16-7016-70
JBL-16-120A16-120
JBL-16-240B
JBL-50-240A50-240
JBL-50-240B
JBL-120-400A120-400
JBL-120-400B


Note: A-two bolts, B-three bolts


3. Packaging Detais

Specific Form Parallel Groove Clamp
