Features:

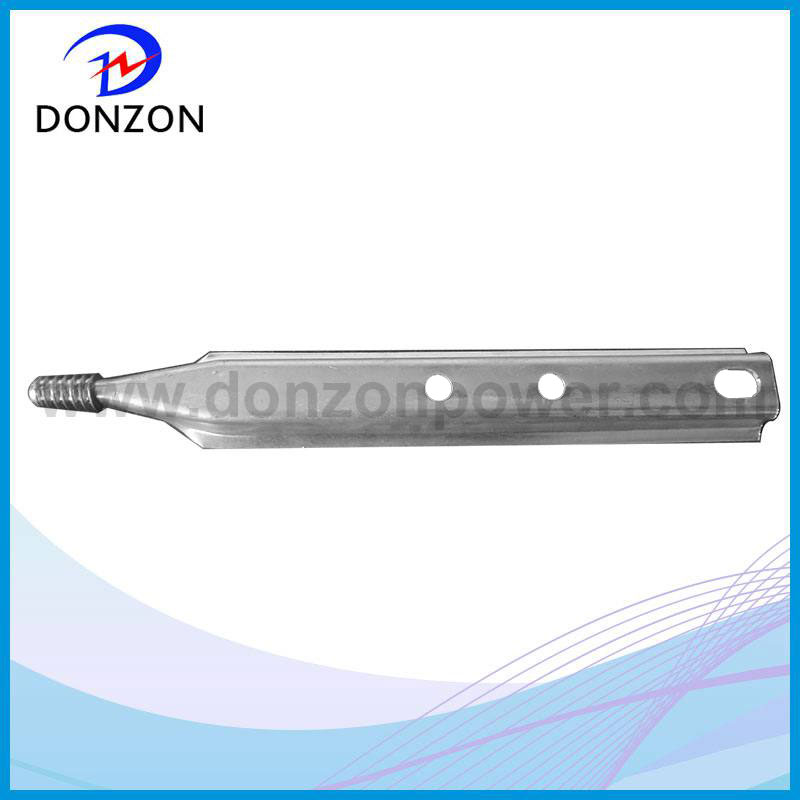

• Pressed steel pole top pins with nylon alloy or cast lead insulator threads are mounted against the pole by 5/8-inch bolts.
• Lower hole is slotted 11/16 x 1-1/4-inch on both two and three hole styles.
Material:
• Pin body: Pressed Steel, Hot Dip Galvanized
• Insulator Threads: Nylon Alloy or Lead
| Pressed Steel - Straight Base | ||||||||
| Catalog Number | Thread Material | Length (In) | S | B | H | Insulator Thread (Inches) | Weight/100 (lbs) | |
| J715Z | Nylon Alloy | 15 | 5 | (2-hole) | 9 | 1 | 232 | |
| J1368ZSL | Nylon Alloy | 18 | 5 | 3 | 9 | 1 | 280 | |
| J1368Z | Nylon Alloy | 18 | 5 | 3 | 9 | 1 | 283 | |
| J744Z | Nylon Alloy | 24 | 5 | 3 | 15 | 1 | 450 | |
| J720Z | Nylon Alloy | 20 | 8 | (2-hole) | 11 | 1-3/8 | 327 | |
| J740Z | Nylon Alloy | 20 | 8 | (2-hole) | 11 | 1 | 320 | |
| J1220Z | Nylon Alloy | 20 | 5 | 3 | 11 | 1 | 314 | |
| Product Group | Hot Dip Galvanized Steel Pole Top Pin Lead Thread |
| Product Type | Hot Dip Galvanized Steel Pole Top Pin Lead Thread |
| Material | Carbon steel |
| Load | 70kn, 120 kn |
| Product Finish | Hot-dip galvanized |
| Zinc thickness | More than 86 micron |
| Feature | Easy insultation with high quality |
| weight | 0.5 kg |
| Packing | Wooden box |
| Pallet Quantity | 100pcs |
| Port | Xingang Port |
| MOQ | 500PCS |
Link fitting are used to link clamps to insulator,or to link insulator and ground wire clamp to tower arms or subjection structure.link fitting have special type and common type in accordance with mounting condition.The special type includes the ball-eye and an socket clevis linking with insulator.The common type is usually pin connected type. They have different grades in according to the load and are exchangeable for the same grade. The meanings of letter &Arabic figures in the catalog are shownas follow. Q-ball eye P-plane parallel W-socket clevis S-double U-Utype L-yoke plate,tension rod thomb 2-900 angle Y-extension B-plate F-square J-strengthen,grading ring T-adjustmentable.Dimerisions of ball and socket for the special type are in accordance with"dimension of balland socket coupling of string insulator unitst-IEC-120 and "Dimension of hanging insulator units forhigh ovltage transminssion line"GB4056-83.
