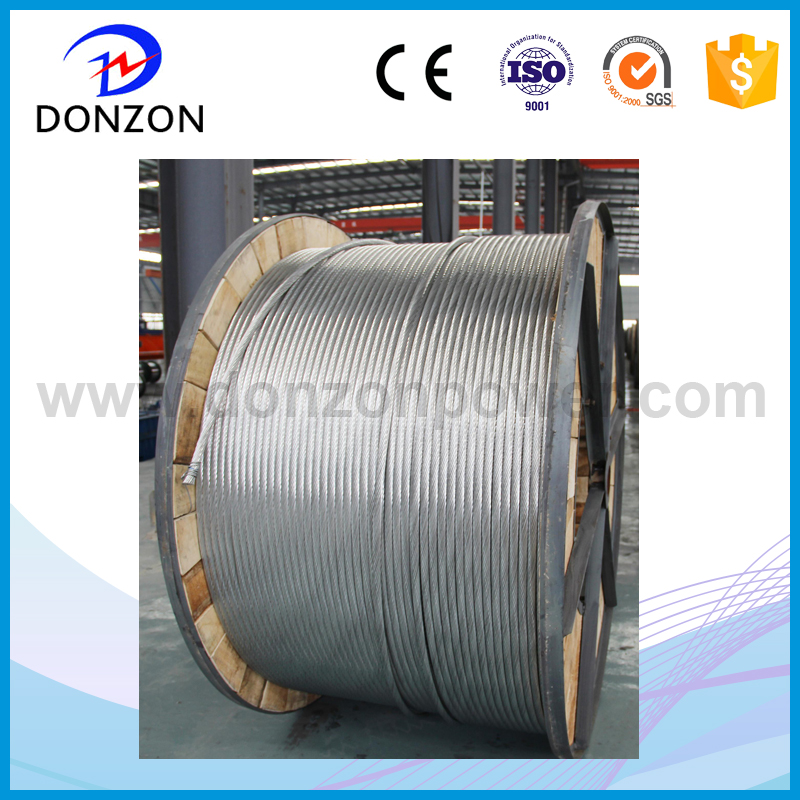

OPGW Cable

Description

1.Application:

OPGW preformed suspension clamp is mainly used to support the suspend OPGW cable. It is suitable for the OPGW cable, conductor and grounding wire on transmission line. It is recommended used on the line with turning angle less than 30 degree.


2.Features:

2.1.Reasonable distribution of static stress, good endurance capacity for dynamic stress (such as vibration and waving). The grip strength to cable can reach 10%~20% of cable's ultimate tension strength.

2.2. No rigidity contact with cable(conductor), minimum abrasion.

2.3. Excellent materials make the clamp has good elasticity, well tenacity, strong fatigue resistance, well corrosion resistance and long & safe service life.

2.4. Not only protecting cable, its round and smooth outer shape can reduce the corona discharge and electromagnetic loss immensely.

Composition: Inner reinforcing rod, outer rod, rubber insert, suspension housing, grounding wire, etc.


Suspension Set for OPGW Optic Fiber Cable


3.Material of inner reinforcing rods and outer rods:

Aluminum alloy wires.

Customers can also choose other linking fittings such as clevis, Eye chain, etc.


4.Specification

4.1 1.The broken strength: 70KN. The holding strength14%-20%RTS.


TYPEFor cable diameter(mm)Outer rodsInner rodscode
(root)Diameter(mm)The length of the finished product(mm)(root)Diameter(mm)The length of the finished product(mm)
OXY 1000 70910115.181350113.01770Red
OXY 1100 7010.111125.181370123.01790Yellow
OXY 1200 7011.112125.181390133.01810Blue
OXY 1300 7012.113135.181410143.01830Green
OXY 1400 7013.114135.181430153.01850Navy Blue
OXY 1500 7014.115145.181450163.01870Black
OXY 1600 7015.116155.181470173.01890Orange
OXY 1700 7016.117155.181490183.01910Purple


4.2 The broken strength: 100KN. The holding strength14%-20%RTS.


TYPEFor cable diameter(mm)Outer rodsInner rodscode
(root)Diameter(mm)The length of the finished product(mm)(root)Diameter(mm)The length of the finished product(mm)
OXY 1000 100910115.181540103.51880Red
OXY 1100 10010.111125.181560113.51900Yellow
OXY 1200 10011.112135.181580123.51920Blue
OXY 1300 10012.113135.181600123.51940Green
OXY 1400 10013.114145.181620133.51960Navy Blue
OXY 1500 10014.115145.181640143.51980Black
OXY 1600 10015.116155.181660153.52000Orange
OXY 1700 10016.117165.181680163.52020Purple


4.3 The broken strength:120KN. The holding strength14%-20%RTS.


TYPEFor cable diameter(mm)Outer rodsInner rodscode
(root)Diameter(mm)The length of the finished product(mm)(root)Diameter(mm)The length of the finished product(mm)
OXY 1300 12012.113135.181620123.52040Green
OXY 1400 12013.114145.181660133.52080Navy Blue
OXY 1500 12014.115145.181700143.52120Black
OXY 1600 12015.116155.181740153.52160Orange
OXY 1700 12016.117165.181780163.52200Purple


5.Packaging and Shipping

Packaging: according to the concrete product cartons,wooden cases (as customer's requirements)

Delivery:usually,it will take about two weeks for the order of 100000sets for production
