Preformed  Strain Clamp/ Helical Dead-end   Clamp For OPPC

Description

1.Description

1.1 The usage and characteristics.

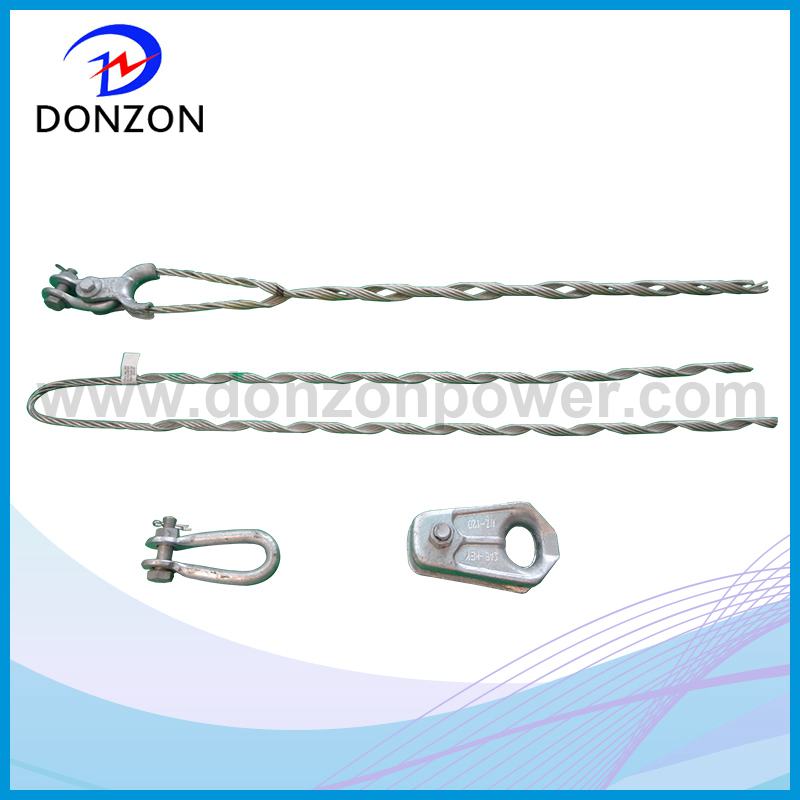

Strain clamp for oppc  optical fiber composite to phase could be divided into single strain clamp and double strain clamp.be selected and used according to engineeering requirement. It is consisted of internal armor rod and external armor rod ,(middle external armor rod should be increased for double strain clamp )and thimble etc.

OPPC strain fitting s need connect with pole tower through insulator.

Remark: strain fittings provided by our company not include insulator chain.

1.2 We have passed the ISO:9001:2008 quality certificate,so there is no doubt about our quality !

1.3 In case of quality discrepancy, claim should be filed by the Buyers within 3 months after the arrival of the goods at port of destination, while of quantity discrepancy, claim should be filed by the Buyers within 15 days after the arrival of the goods at port of destination. It is understood that the Sellers shall not be liable for any discrepancy of the goods shipped due to causes for which the Insurance Company, Shipping Company, other transportation, organization/or Post Office are liable.


2.Specification


TypeAvailable Dia of cableLength of preformed wireRef. Weight
   (kg)
Devastating strength (kn)
Min (mm)Max(mm)Inner (mm)Outer (mm)
OPNL12.914.1186014002.6100
OPNL14.215.5210015502.9100
OPNL15.617.3230016803.6100
OPNL17.419.2260020004.7120
OPNL19.321.1280022005.2120
OPNL21.223.0320028006.7120



3.Packaging and Shipping

Packaging: according to the concrete product cartons,wooden cases (as customer's requirements)

Delivery:usually,it will take about two weeks for the order of 100000sets for production
