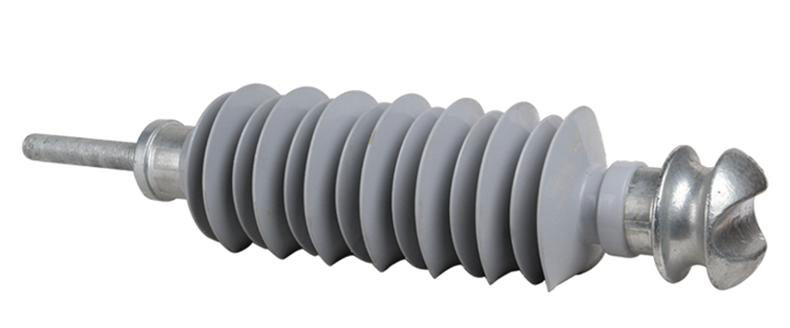

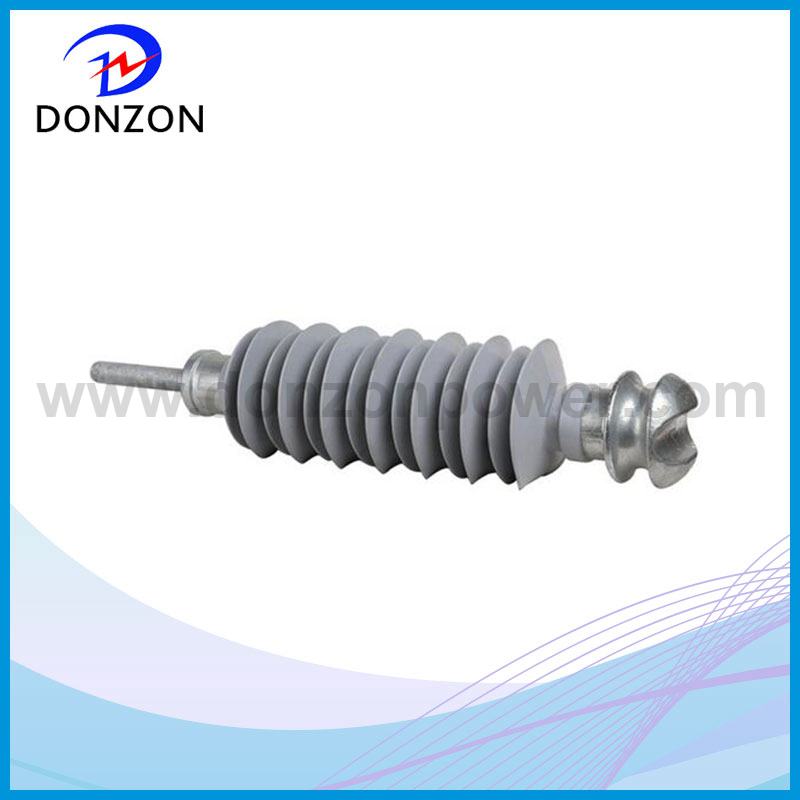

High Voltage Pin 11kv /33KV Composite Pin Insulator

Description

Product Description


TypeNo.
Of
Sheds
X
Length
inches
(mm)
Diameter
Inches
(mm)
Leakage
Distance
 Inches
(mm)
Dry
Arc
;Distance
inches
(mm)
Lighting withstand voltageWet power frequency voltageSML
Specified Mechanical Load(KN)
Dd
FPQ-10/5.0328512393450208110405.0
FPQ-24/10.05320168/8002061707010.0
FPQ-24/12.552521651356501651706512.5
FPQ-36/12.01448013011512003562309012.0
FPQ-36/10.01150713212211003562309010.0



1. Shed connected with core by integral foring

2. The thinkness of housing > 3mm,unifirm to IEC Standard

3. Acid resistant,hight temperature resistant of epoxy fiberglass core

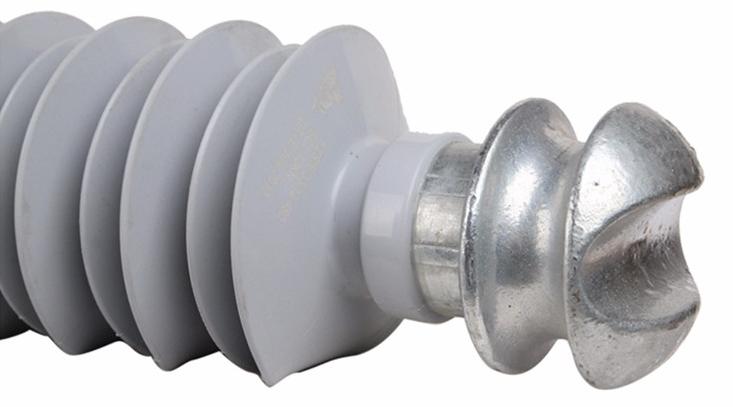

4. Metal end fittings,core and sheds connected by new crimping process

5. Hot galvanization and technology of rareearth aluminum coating to avoid coating shedding prolonging the service life




High Tensile Strength Solid 36kv Silicone Insulator


Product Characteristics

1.No flaw,crack in the surface and interior,each bar color uniform(green or light yellow).

2.Can withstand the sawing,milling,planning,drilling,lathe and other mechanical processing.

3.Internal thread can be tapping with screw tap,external thread can be polished,but not allowed to bear overload.

4.It has good damping,creep resistance,fatigue resistance,fracture resistance ,high temperature resistance,stress corrosion resistance etc.


Application

High Tensile Strength Solid 36kv Silicone Insulator
