Guy grips

Description

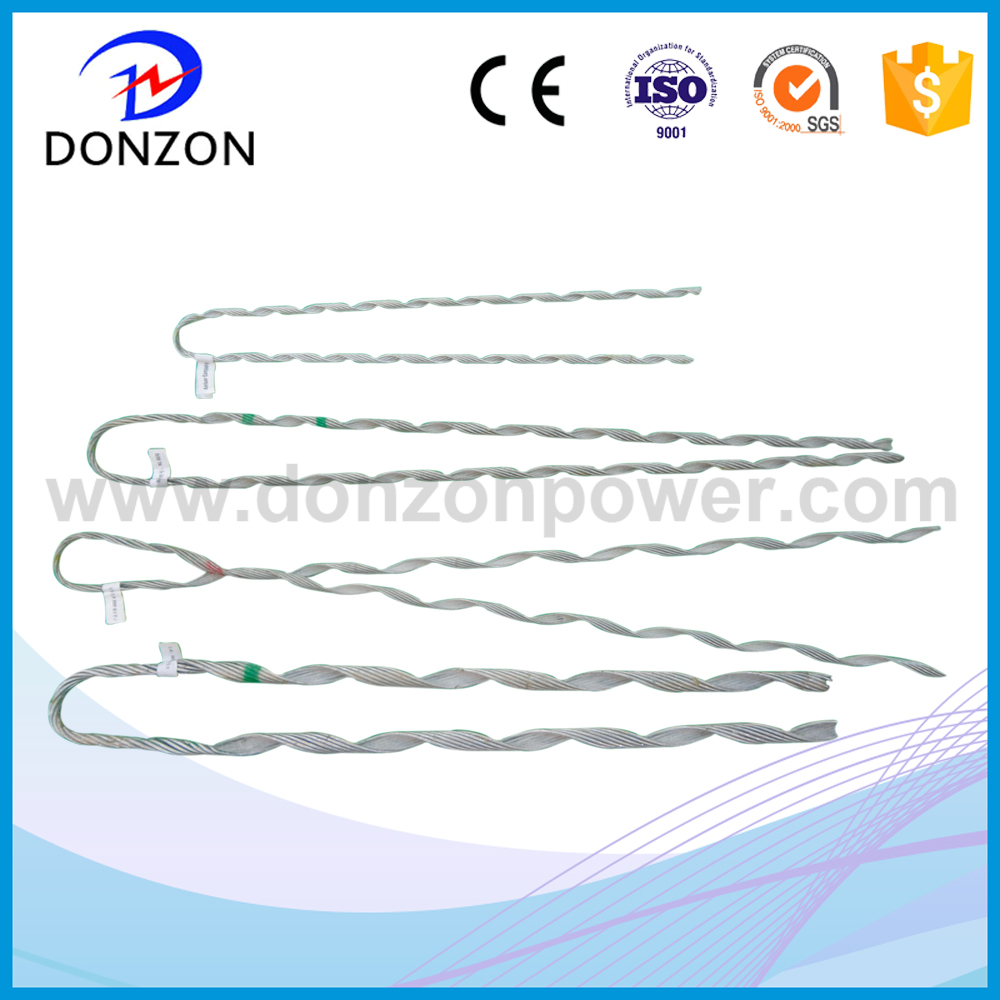

Guy grips

1.Product Description

 High Strength, Easy Corrosion-resistance, Easy Installation, Reliable installation quality,

Strong Universality, Adequate Holding strength

Guy grips  is made of stainless  steel wire of  aluminum alloy  wire.


1.It has big grip and high safety performance.It used in electric line of  steel strand wire,aluminum strand wire,steel-core aluminum strand wire and insulated conductor etc.The guy grip of helical strain clamp could reach to 100% strand wire calculated dragging force at break (CUTS)or above.

2.Helical strain clamp has characteristics of easy installation ,simple construction,no special ensure required,good consistency.

3.The clamp has good corrosion resistance.The material is same with conductor ,which could ensure  the clamp has s the strong ability of resistance to chemical corrosion

4.The clamp adopts spiral design ,which improve the anti-vibration capacity of conductor ,distribute the stress uniformly ,no damage for conductor ,prolong the service life of conductor.

2.Product Specification


NO.

Standard DL/T 763-2001 Reference

Type

Available Dia. of Conductor(mm)

Suitable Conductor

Length(mm)

Color code

Min

Max

1

NL-35/6

DNL 2112

7.35

8.26

35/6

630

yellow

2

NL-50/8

DNL 2114

9.26

10.39

50/8

690

black

3

NL-70/10

DNL 2115

10.4

11.68

70/10

750

blue

NL-50/30

50/30

4

NL-70/40

DNL 2117

13.12

14.66

70/40

890

green

NL-95/15

95/15

NL-95/20

95/20

NL-120/7

120/7

5

NL-120/20

DNL 2118

14.67

16.59

120/20

900

red

NL-95/55

95/55

NL-120/25

120/25

NL-185/8

185/8

6

NL-150/20

DNL 2119

16.6

18.77

150/20

1030

yellow

NL-120/70

120/7

NL-150/25

150/25

NL-150/35

150/35

NL-185/10

185/10


3.Packaging details

Packaging Details:cartons ,wooden  cases, then put on pallets

Other packaging according to customer requirements

Delivery Dtalis:Within two weeks
